TSSACC1TIMKIT - Single Door Access Control Kit

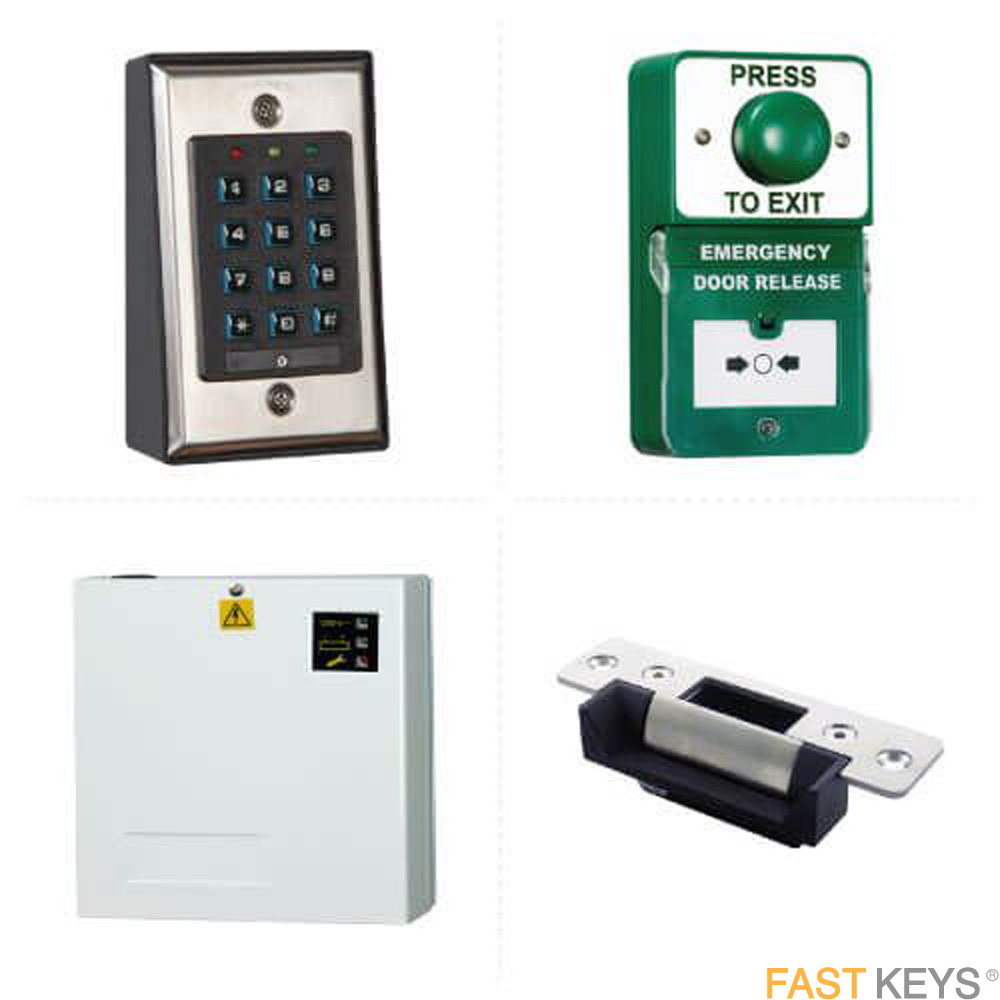

A boxed kit containing all four of the following items - all you need to build a cost effective Access Control Solution for a single, internal door -------------------------------------------- TSSKEYPAD1 – ECONOMY KEYPAD -------------------------------------------- • Input Power: 12-24V DC • Dimensions: 117mm x 74mm x 39mm • System type: Offline • Visual interface: LED indicators • Programming Method: Direct Via Keypad • No of user codes: 120 • Finish: Black/Stainless steel -------------------------------------------- DUAL PUSH TO EXIT & EMERGENCY DOOR RELEASE -------------------------------------------- • Dimensions: (H) 160mm x (W) 90mm x (D) 63mm • Operation: Dome exit button or resettable emergency door release • Finish: Green -------------------------------------------- 12V DC BOXED SWITCH MODE POWER SUPPLY UNIT -------------------------------------------- • Dimensions: (H) 225mm x (W) 200mm x (D) 75mm • Battery monitoring@ None • Voltage: 12V • Current type: DC • Output to load: 1 Amp -------------------------------------------- ANSI STYLE MORTICE ELECTRONIC RELEASE -------------------------------------------- • Cost effective solution: For the replacement of 12V – 24 DC ANSI trikes • The Strike is field reversible between fail safe and fail secure • Features a flat faceplate for single doors
