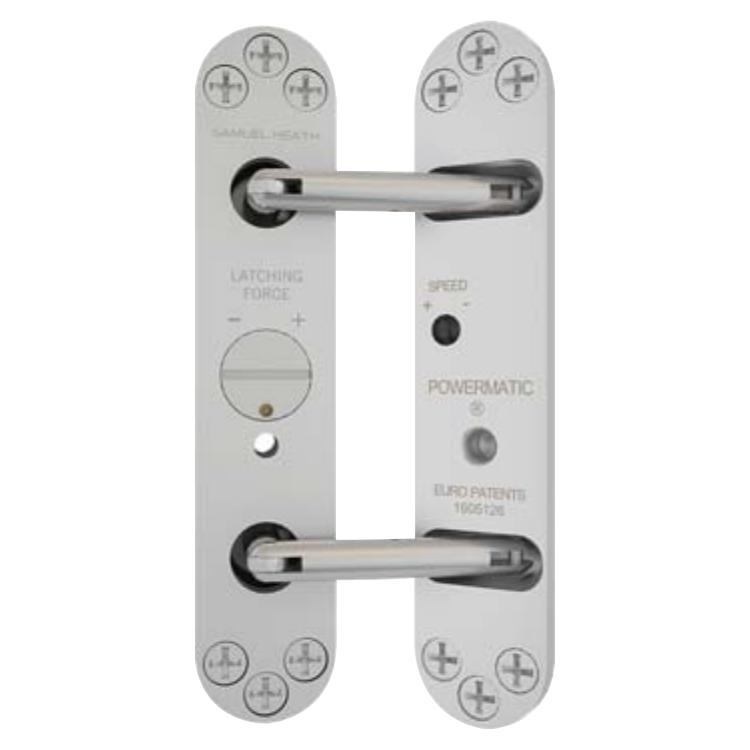

SAMUEL HEATH Powermatic R100 Concealed Door Closer - SC

The Samuel Heath Powermatic R100 is a controlled concealed jamb-mounted door closer designed to provide reliable door closing without exposed overhead hardware. Suitable for doors up to 80kg in weight and 950mm wide, it has been successfully type tested to BS EN 1154 power size 3, based on a 60kg test door. The closer is suitable for both latched and unlatched installations and incorporates Samuel Heaths unique twin power mechanism.

The closing speed and power latching action can be independently adjusted to provide controlled closing throughout the door cycle. The closer is suitable for doors opening to a maximum of 105° and a door stop should be fitted to prevent the door travelling beyond this point. Its concealed installation makes it particularly suitable where discreet appearance, resistance to tampering and reduced exposed hardware are required.

This product is Certifire approved to CF 370 and is fire rated for timber (FD60) and metal (FD120) fire doors. This product is fire tested and must be installed per the manufacturers instructions, and with all relevant associated products.

• Controlled concealed jamb-mounted door closer
• BS EN 1154 power size 3
• Suitable for doors up to 950mm wide
• Suitable for door weights up to 80kg
• Adjustable closing speed
• Adjustable power latching action

• Stock: 29
