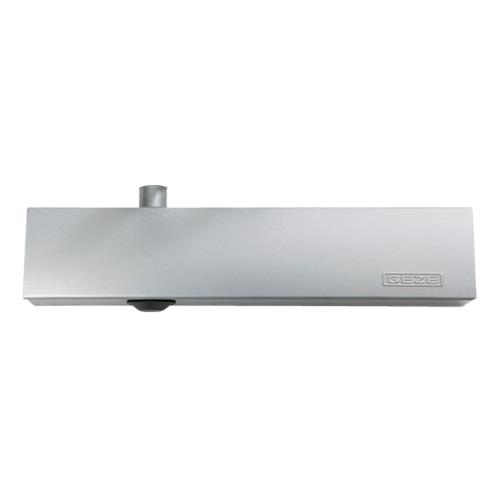

GEZE TS4000E Size 1-6 Overhead Door Closer Body with Electro-hydraulic Hold Open - Body Only

The GEZE TS 4000 E is a surface mounted overhead door closer body incorporating an electric hold-open device for single action doors up to 1400mm wide. It features continuously adjustable closing force from EN size 1 to 6 and can be used on both right and left hand doors without conversion. The electric hold-open function operates over an adjustable range from 80° to 175°, allowing the door to be held open where required as part of a suitable hold-open system.

The closing speed can be individually adjusted, while the latching action is adjusted through the associated link arm. A visual closing force indicator allows the selected setting to be easily checked and the main adjustment functions are accessible from the front of the closer. The unit operates from a 24V DC supply and is supplied as the closer body without link arm.

The GEZE TS 4000 E is suitable for fire and smoke protection door applications when installed as part of an approved door assembly. This product is Certifire approved to CF 252 and is fire rated for timber (FD60) and metal (FD120) fire doors. This product is fire tested and must be installed per the manufacturers instructions, and with all relevant associated products.

• Surface mounted overhead door closer body
• Adjustable closing force EN size 1 to 6
• Suitable for single action doors up to 1400mm wide
• Electric hold-open function
• Adjustable hold-open range from 80° to 175°
• Adjustable closing speed and latching action

• Stock: 13
