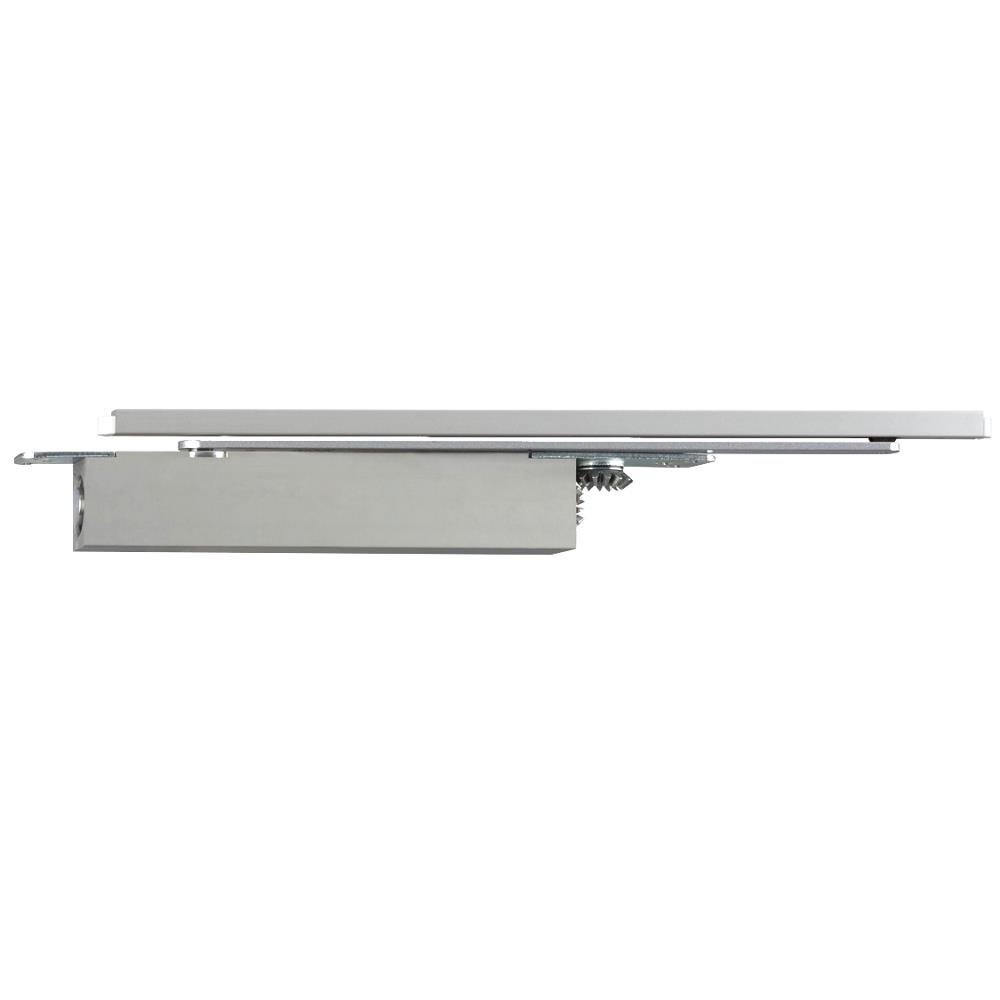

GEZE Size 3-6 Boxer Concealed Door Closer - Boxer (3-6)

The GEZE Boxer EN 3-6 is a concealed overhead door closer designed for integration into the door leaf, providing controlled closing performance with minimal visible hardware. It is suitable for single action doors up to 1400mm wide and 180kg in weight, with continuously adjustable closing force from EN size 3 to 6. The closer can be used on both left and right hand doors and is suitable for fire and smoke protection applications where the relevant door approval permits.

Closing speed, latching action and hydraulic backcheck can all be adjusted from the top of the closer after installation. The concealed body measures 293 x 40 x 54mm and is suitable for door leaves from 50mm thick. A compatible Boxer guide rail is required to complete the installation.

This product is Certifire approved to CF 242 and is suitable for use on FD30, FD60 and FD90 fire doors. This product is fire tested and must be installed per the manufacturers instructions, and with all relevant associated products.

• Concealed overhead door closer
• Adjustable closing force EN size 3 to 6
• Suitable for single action doors up to 1400mm wide
• Suitable for door weights up to 180kg
• Minimum door leaf thickness 50mm
• Adjustable closing speed

• Stock: 3
