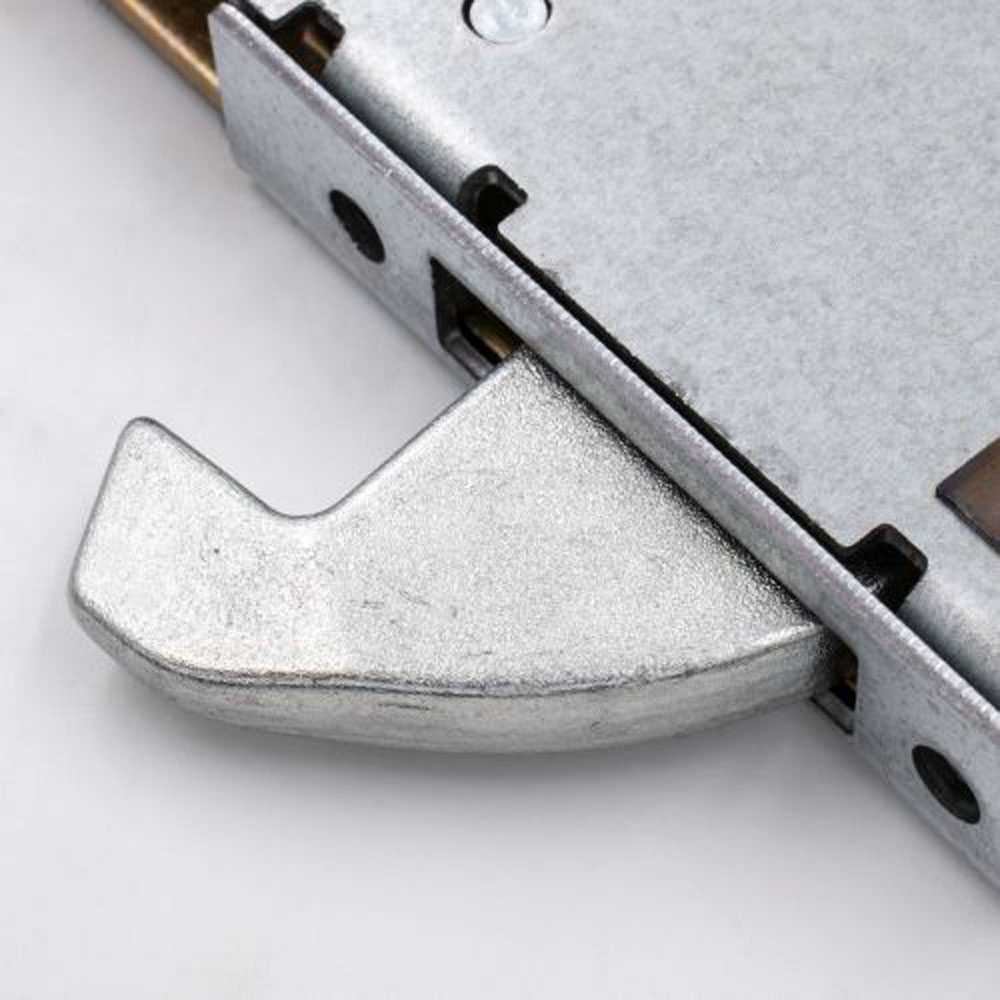

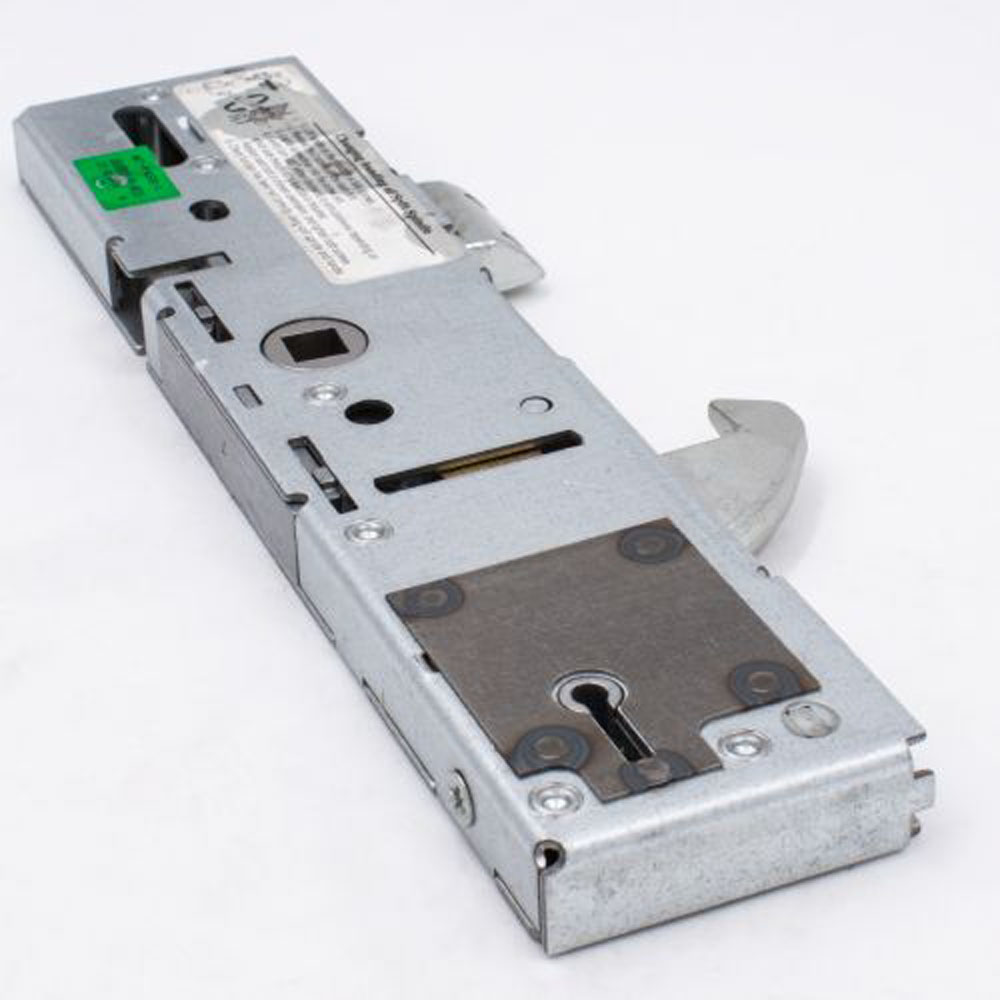

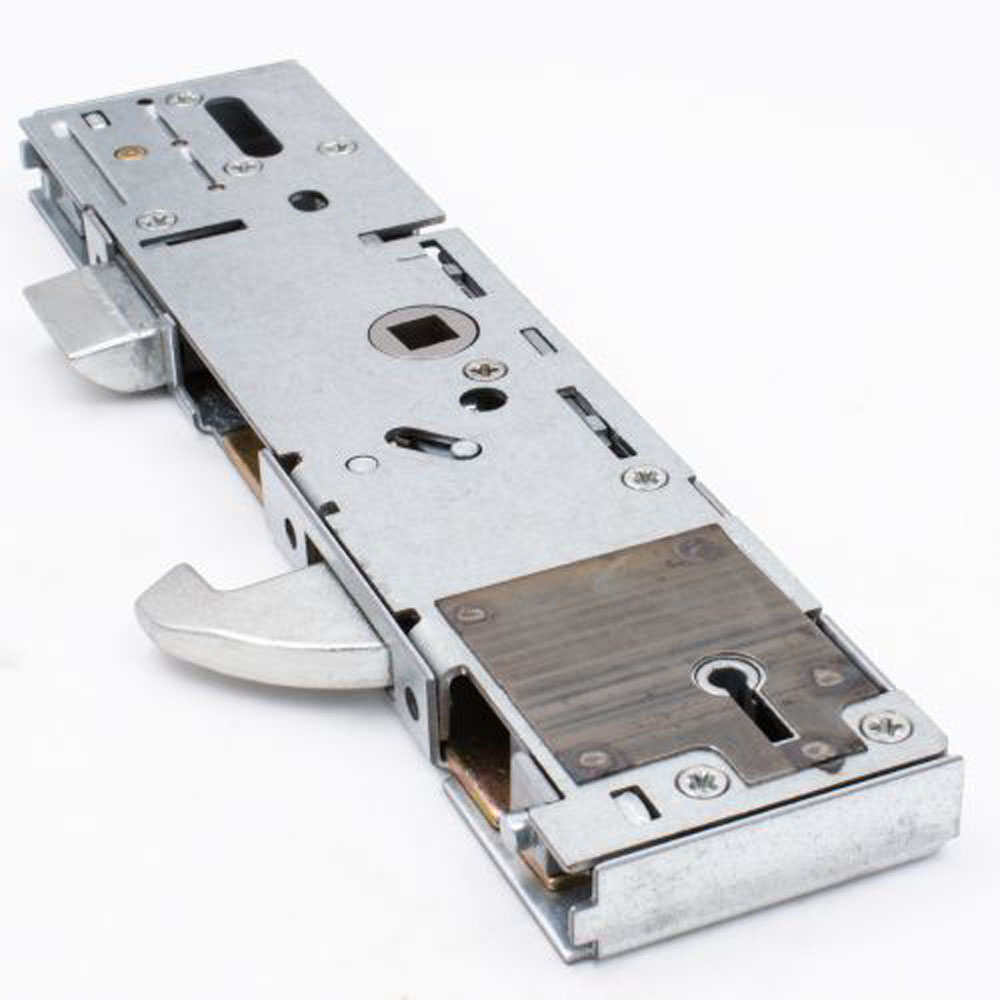

ERA Vectis Hookbolt Genuine Gearbox

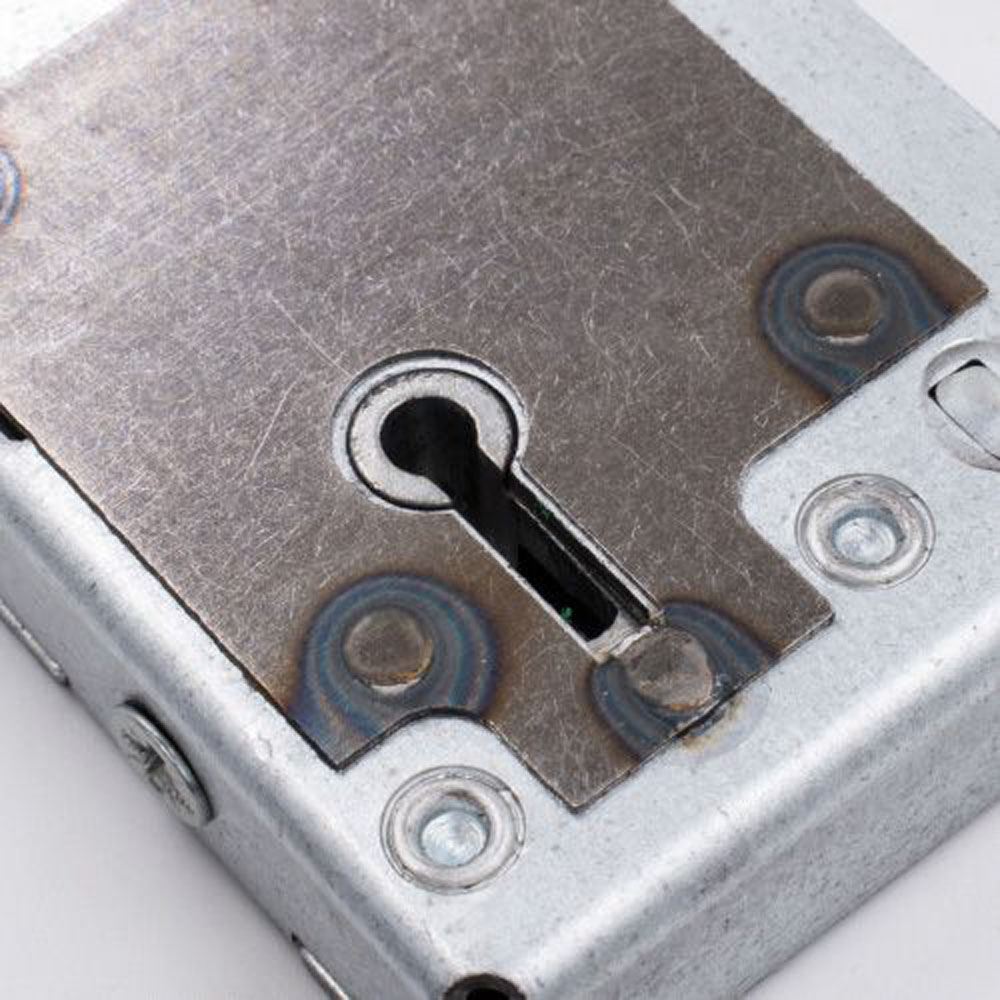

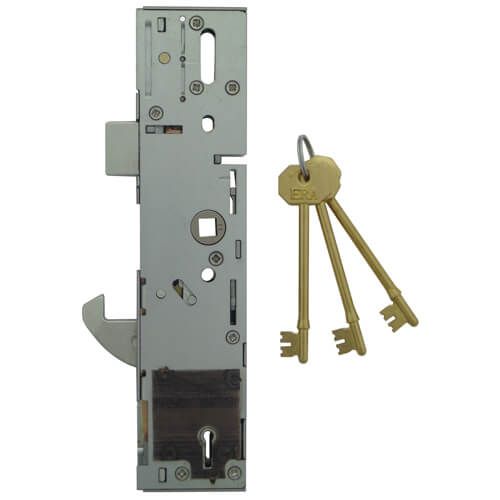

This ERAvectis deadbolt genuine gearbox features a split spindle, has 92mm centres and is available with either a 35mm or 45mm backset. Vectis cases are interchangeable with any ERA multipoint lock and allow for mortice locking on multipoint locks. Can be keyed alike in house, supplied with 3 keys. No euro cylinder required, 35mm is supplied with long keys for UPVC. 45mm is supplied with short keys for timber.

Operation: Liftlever

Nightlatch reversal: Remove latch to reveal a small screw. Use a small bladed screw driver to turn the screw 180 degrees then return latch to correct position.

Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

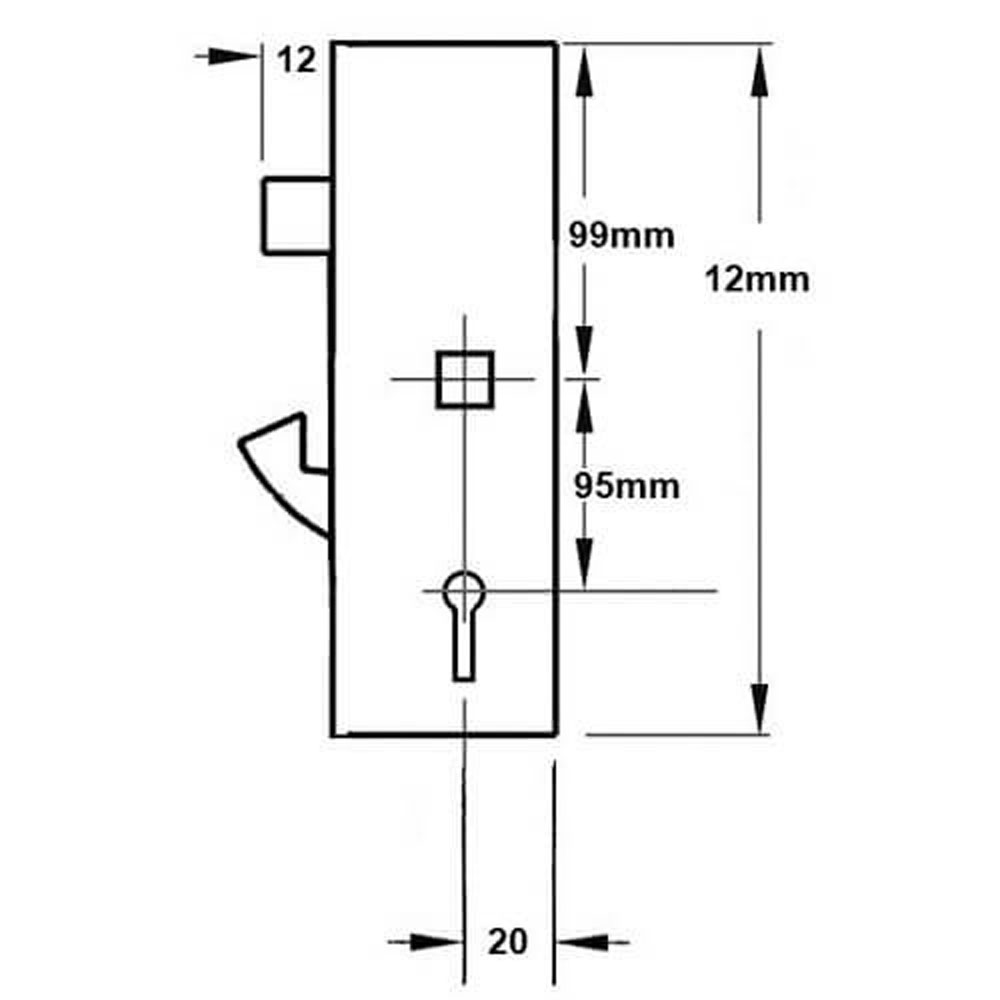

• H x W: 220mm x Backset + 20mm.
• Centres: 92mm.

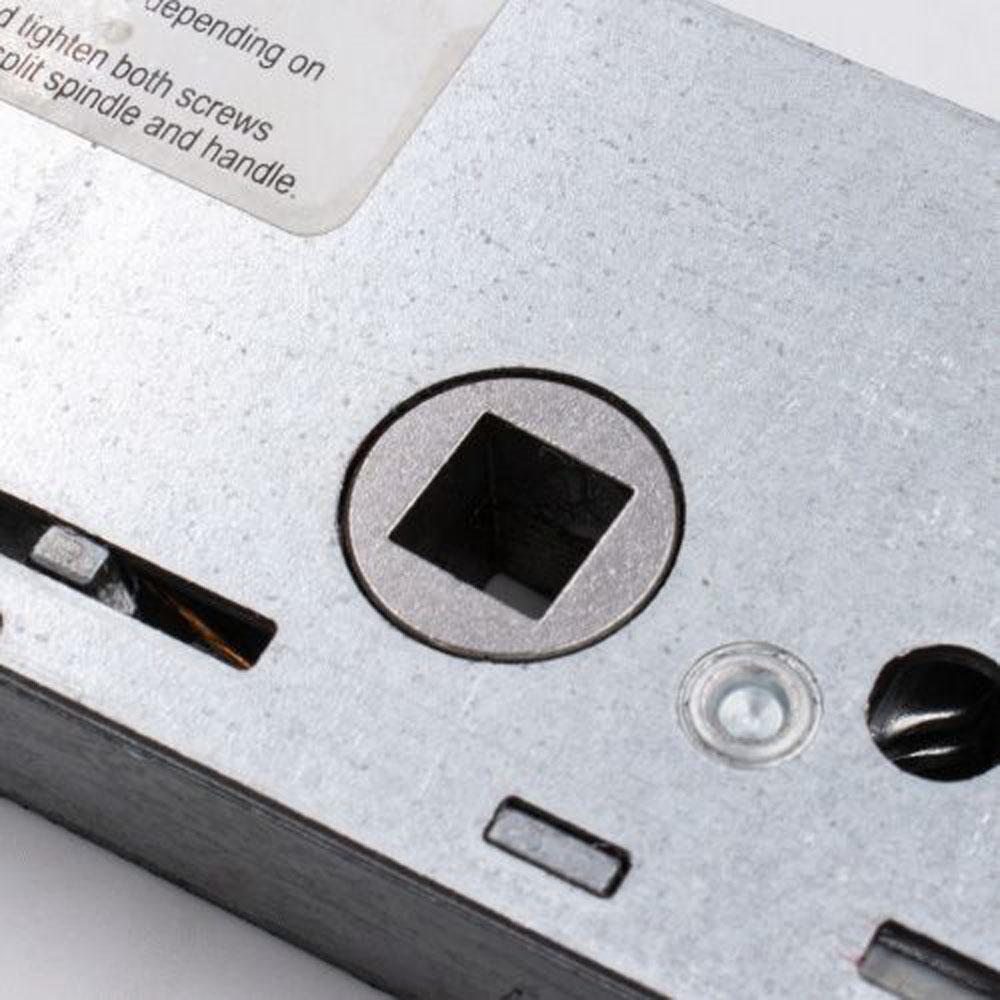

• Spindle: Split 8mm.
• Packaging: Supplied loose in singles or polybagged
