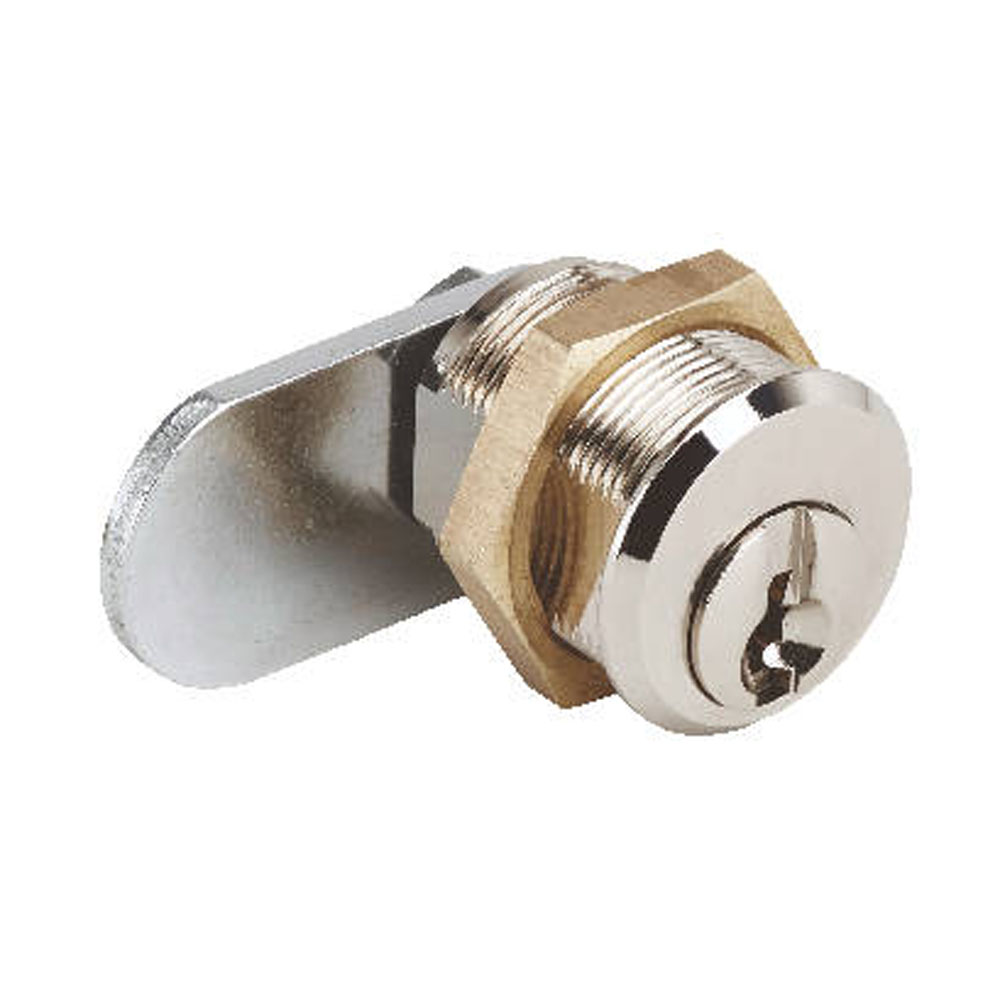

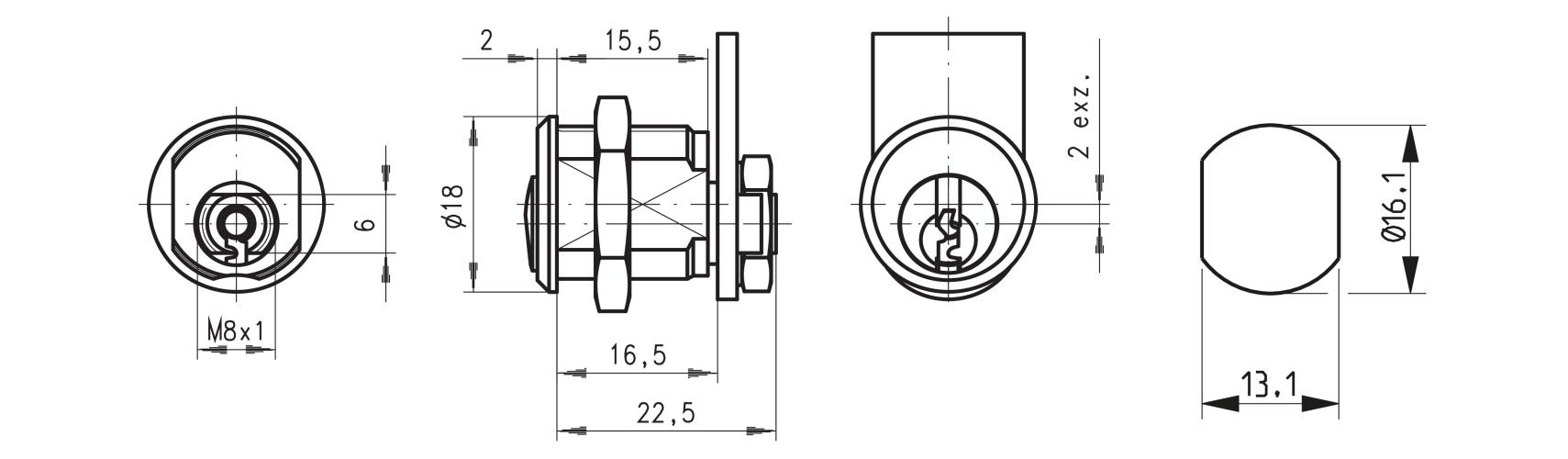

DOM Mini Cam Lock - 16mm Body Length - 22mm Straight Cam

The DOM 316025 cam lock is manufactured in Brass. This ensures we can offer a product that is a robust and strong solution with a proven track record of offering a long life cycle. The core itself utilises Pin Technology, providing a medium level of security for your application. It can also be integrated into new or existing Master Key systems where required.

We offer a comprehensive range of pin cam locks to suit the market requirements. Depending on your assembly process, we can offer you the best suited lock fixing to ensure an efficient and effective installation . The cam is secured in place with a Nut fixing.

• Made from high quality materials, with a choice of finishes that provide a strong and robust product that you can rely on.
• Conventional Pin technology offers a medium level of security.
• Offering up to a 5 Pin cylinder with a possible 482 combinations. Lock rotations possible are: 90° Right opening / Left closing, 90° Left opening / Right closing and 90° Left & Right.
• 2 keys are provided as standard with a Steel key option available.
• Secured in place with a Brass Nut fixing.
• We offer an extensive range of cams to ensure we offer the best locking solution.
• Bright Nickel finish available as standard.
• Suitable for your individual locking depth because of different cams
