Locks
19B

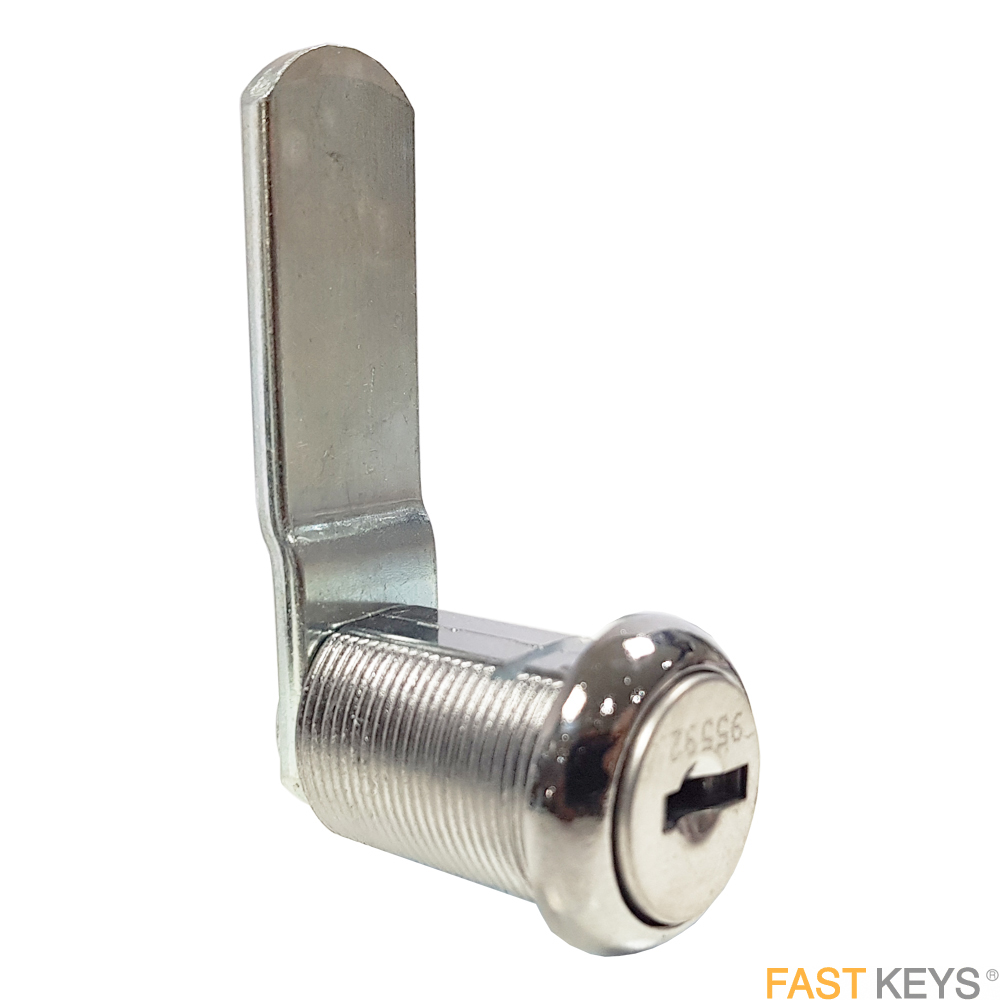

Lowe and Fletcher L&F 1484 cam lock 22mm cam lock. Nut or Horseshoe Clip Fix.

Product Code: 19B

£7.74 inc vat.

£6.45 each ex vat.

Delivery

Usually Same Day Dispatch

Quantity Discount

1 - 29

£6.45

30 - 99

£5.16

100+

£4.30

Quantity

Extra Keys (Per Lock) @ £2.74

Master Keys @ £5.50

Cam Options - Bagged Loose

--Select--
CAM100 L&F cranked cam A= 3.2mm B= 50mm (No Charge)
CAM103 L&F straight hooked cam B= 24mm (No Charge)
CAM108 L&F cranked cam A= 1.6mm B= 50mm (No Charge)
CAM125 L&F straight 3 point cam - 36mm (No Charge)
CAM126 L&F cranked 3 point cam - 60mm with 7.9mm crank (No Charge)
CAM127 L&F cranked hooked 3 point cam - 40mm with 6.4mm crank (No Charge)
Cam01 L&F Straight Cam B= 22mm (No Charge)
Cam02 L&F straight cam B= 25mm (No Charge)
Cam03 L&F straight cam B= 30mm (No Charge)
Cam05 L&F straight cam B= 44mm (No Charge)
Cam06 L&F straight cam B= 48mm (No Charge)
Cam07 L&F straight cam B= 51mm (No Charge)
Cam08 L&F straight cam B= 58mm (No Charge)
Cam10 L&F cranked cam A= 3.2mm B= 35mm (No Charge)
Cam11 L&F cranked cam A= 3.2mm B= 48mm (No Charge)
Cam12 L&F cranked cam A= 5.6mm B= 38mm (No Charge)
Cam13 L&F cranked cam A= 5.6mm B= 52mm (No Charge)
Cam138 L&F straight cam B= 38mm (No Charge)
Cam14 L&F cranked cam A= 6.4mm B= 56mm (No Charge)
Cam15 L&F cranked cam A= 11.1mm B= 50mm (No Charge)
Cam16 L&F cranked cam A= 5.6mm B= 50mm (No Charge)
Cam20 L&F cranked hook cam A= 11.1mm B= 40mm (No Charge)
Cam21 L&F Cranked Hooked Cam A= 4.8mm B= 29mm (No Charge)

Cam Options - Bagged Loose

Fixing Type

--Select--
Horseshoe clip (No Charge)
Nut 01 Cam Lock Locking Nut (No Charge)

Fixing Type

SECURE CHECKOUT

Details

Notes

Locks can be fitted by Horseshoe Clip or Nut,180 Degree turn.

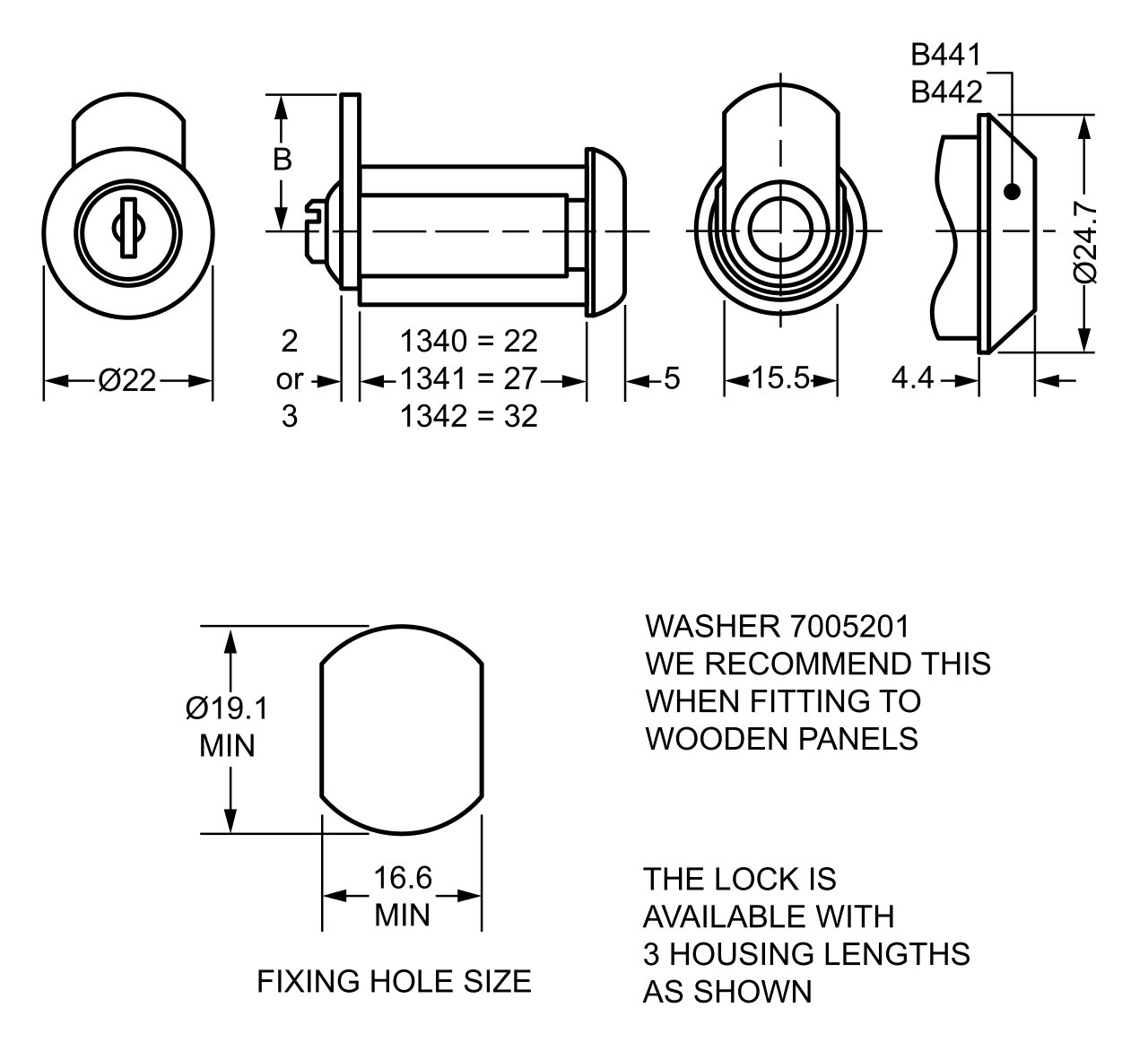

Technical Drawing

Technical Documents

Key Series

95001 - 97000

Keys Supplied

Key Series

A Key Series carries a range of different, normally sequential numbers called 'differs'. Often, the number is engraved on the face of the lock and each differ number has its own unique key.

Specifications

Barrel Length

22mm

Barrel Length

Keying Options

Keyed to Differ

Keying Options

'Keyed to Differ' Every lock has it's own unique key. 'Keyed Alike' All locks work under the same key.

Lock Mechanism

Cylinder Key

Lock Mechanism

Cam Type

Cranked

Cam Type

Turn

180 degree

Turn

Fixing Type

Nut Horseshoe Clip

Fixing Type

Keyed Alike Options

N/A

Keyed Alike Options

All locks work under the same specified Key Number. 'In Pairs' Locks are supplied in pairs where each set of two locks will have their own unique key that will operate both locks.

Master Keyable

Yes

Master Keyable

Each lock will have it's own unique key and a master key that will work in every lock

Head Shape

Round

Head Shape

Quantity

Extra Keys (Per Lock) @ £2.74

Master Keys @ £5.50

Cam Options - Bagged Loose

--Select--
CAM100 L&F cranked cam A= 3.2mm B= 50mm (No Charge)
CAM103 L&F straight hooked cam B= 24mm (No Charge)
CAM108 L&F cranked cam A= 1.6mm B= 50mm (No Charge)
CAM125 L&F straight 3 point cam - 36mm (No Charge)
CAM126 L&F cranked 3 point cam - 60mm with 7.9mm crank (No Charge)
CAM127 L&F cranked hooked 3 point cam - 40mm with 6.4mm crank (No Charge)
Cam01 L&F Straight Cam B= 22mm (No Charge)
Cam02 L&F straight cam B= 25mm (No Charge)
Cam03 L&F straight cam B= 30mm (No Charge)
Cam05 L&F straight cam B= 44mm (No Charge)
Cam06 L&F straight cam B= 48mm (No Charge)
Cam07 L&F straight cam B= 51mm (No Charge)
Cam08 L&F straight cam B= 58mm (No Charge)
Cam10 L&F cranked cam A= 3.2mm B= 35mm (No Charge)
Cam11 L&F cranked cam A= 3.2mm B= 48mm (No Charge)
Cam12 L&F cranked cam A= 5.6mm B= 38mm (No Charge)
Cam13 L&F cranked cam A= 5.6mm B= 52mm (No Charge)
Cam138 L&F straight cam B= 38mm (No Charge)
Cam14 L&F cranked cam A= 6.4mm B= 56mm (No Charge)
Cam15 L&F cranked cam A= 11.1mm B= 50mm (No Charge)
Cam16 L&F cranked cam A= 5.6mm B= 50mm (No Charge)
Cam20 L&F cranked hook cam A= 11.1mm B= 40mm (No Charge)
Cam21 L&F Cranked Hooked Cam A= 4.8mm B= 29mm (No Charge)

Cam Options - Bagged Loose

Fixing Type

--Select--
Horseshoe clip (No Charge)
Nut 01 Cam Lock Locking Nut (No Charge)

Fixing Type

SECURE CHECKOUT

FAQ’s

Talk to a member of our sales team for helpful advice on how to identify the correct key or lock for your office furniture.

Learn More

Contact support

Checkout our frequently asked question below. If you still can't find your answer, please contact us. Our team is available Monday to Friday 9am - 5pm.

Learn More

Returns Policy

For sales enquiries or technical support, why not try our live chat service. Our team are available from 9am - 5pm Monday - Friday

Learn More

More about the Lowe & Fletcher, L&F 19B

Lowe and Fletcher L&F 1484, cam lock 22mm cam lock. Nut or Horseshoe Clip Fix. Available Keyed Alike.
